TRACE CABLES THE EASY WAY WITH CISCO CDP ON WINDOWS

April 30, 2021 by Munkhtuvshin Baatar
No comments

Download tool from:
https://www.definit.co.uk/2010/02/trace-cables-the-easy-way-with-cisco-cdp-on-windows/

Example of usage:
Step1:

c:\temp\tcpdumptcpdump.exe -D

********************************************************************
**                                                                **
**              Tcpdump v4.9.2 (September 03, 2017)               **
**                   http://www.tcpdump.org                       **
**                                                                **
** Tcpdump for Windows is built with Microolap Packet Sniffer SDK **
**              Microolap EtherSensor product family              **
**               build 5072.01 June 10, 2019 <<<              **
**                                                                **
**        Copyright(c) 1997 - 2019 Microolap Technologies         **
**       http://microolap.com/products/network/ethersensor        **
**         http://microolap.com/products/network/tcpdump          **
**                                                                **
**                  XP/2003/Vista/2008/Win7/Win8                  **
**                 Win2012/Win10/Win2016/Win2019                  **
**               (UEFI and Secure Boot compatible)                **
**                                                                **
**                       Trial license.                           **
**                                                                **
********************************************************************

1.\Device\{F4F682D0-3FEA-4DF1-9385-878235FC4177} (Intel(R) I350 Gigabit Network Connection)
2.\Device\{FF4C946F-ADB3-4DC9-A61A-A91973AFD7E8} (Intel(R) I350 Gigabit Network Connection)
3.\Device\{6C48897F-B39D-4298-B3D3-19402E588D0E} (Intel(R) I350 Gigabit Network Connection)
4.\Device\{D6A49332-2416-4227-89F5-55A5AA19578F} (Intel(R) Ethernet Converged Network Adapter X710)
5.\Device\{7C3220F8-224E-4867-B050-E252D849E404} (Intel(R) Ethernet Converged Network Adapter X710-2)
6.\Device\{9A86189E-CD60-4FD6-93C5-64E8DF14337D} (Intel(R) Ethernet Converged Network Adapter X710-2)
7.\Device\{32BBADAE-BA53-433C-B796-C51CC9526F23} (Intel(R) I350 Gigabit Network Connection)
8.\Device\{B87C05E6-1BF1-4126-AF7C-E01BC0D507DD} (Intel(R) Ethernet Controller X540-AT2)
9.\Device\{543DFBD5-610B-4165-B9B2-B1C6447272C7} (Intel(R) Ethernet Converged Network Adapter X710)
10.\Device\{CB9851A4-A64A-4F31-8AF8-97A812217C44} (Intel(R) Ethernet Controller X540-AT2)

which of interfaces is our?
Step2:

Step3:
Now we know value for parameter -i

c:\temp\tcpdumptcpdump -i 1 -nn -v -s 1500 -c 1 ether[20:2] == 0x2000

********************************************************************
**                                                                **
**              Tcpdump v4.9.2 (September 03, 2017)               **
**                   http://www.tcpdump.org                       **
**                                                                **
** Tcpdump for Windows is built with Microolap
… Read the rest

How to report in Active Directory all protected users

March 28, 2020 by Munkhtuvshin Baatar
No comments

If you use ManageEngine ADmanager Plus then some your manual operations or automations can fail due to the “Protect from accidental deletion”. In this case it’s very useful to determine who has already this attribute enabled:

Get-ADuser -Filter * -Properties * | select-object name, samaccountname,enabled, ProtectedFromAccidentalDeletion | export-csv -path c:\temp\protection-status.csv -NoTypeInformation

if you need to disable this attribute pls visit my other post

 … Read the rest

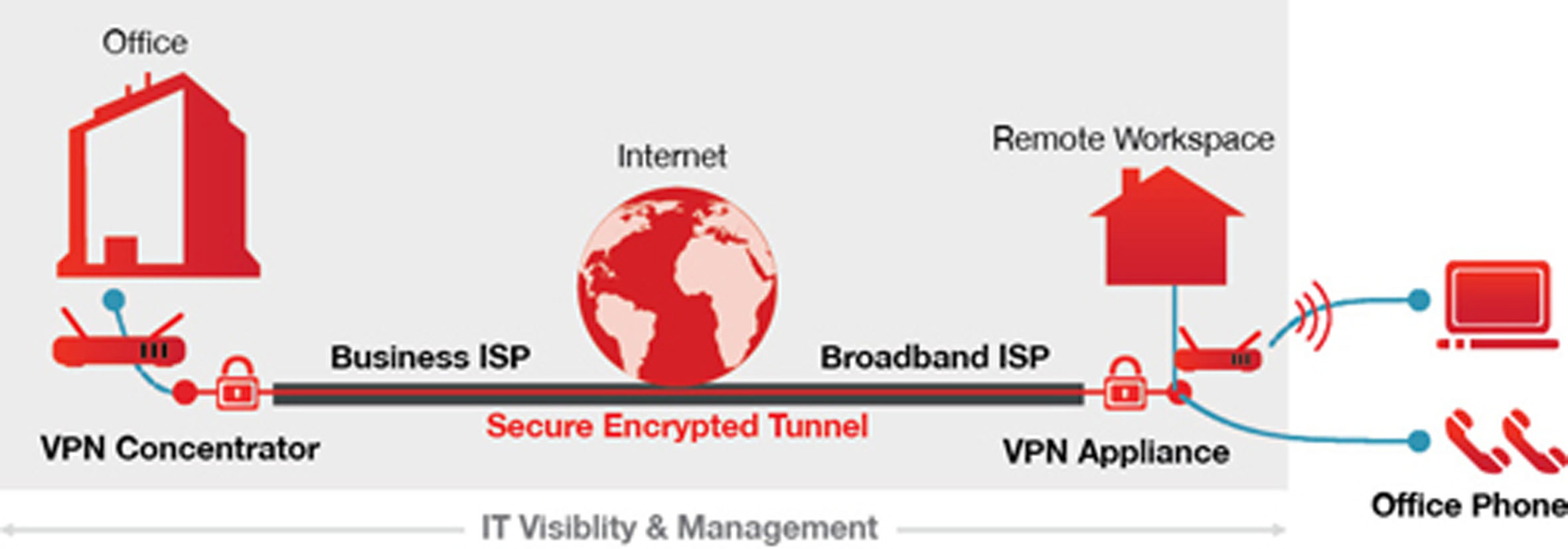

How to configure safe vpn for free and easy

March 28, 2020 by Munkhtuvshin Baatar
No comments

Coronavirus forced many people, companies to move to teleworking. The banks and large corporations surely have enough budget to buy enterprise vpn boxes and solutions. My post is only for small companies which need free/cheap solution to access own small office infrastructure during coronavirus pandemia from home, remote offices and at the same time to avoid directly openning RDP access from the internet (which is not safe at all even with DUO 2fa and so on)

It’s assumed that the small company has at least

  1. router which can port forward (even tplink and dlink can do it;  if you have
… Read the rest

How to create handy boot USB toolbox

November 16, 2017 by Munkhtuvshin Baatar
No comments

To have for each tool CD/DVD/USB flash disk is too inconvenient, so let’s combine on one USB flash disk all of them.

  1. Download yumi
  2. format your Flash disk as FAT32 (ntfs will not work with grub loader), so there is iso file limitation of FAT32, not more than 2GB.
  3. never leave in iso file name spaces. Prepare all necessary iso files (usually i prefer to have multiple versions of hiren tools/ERD/DART10/acronis tools, veeam BER, macrius repair disk, veeam agent, WDS capture disk and so on)
  4. iso files are not extracted and copied as is to the flash disk !!! not
… Read the rest

How to create site to site vpn from pfsense to openvpn server.part3

July 22, 2017 by Munkhtuvshin Baatar
2 comments
  1. How to create site to site VPN for SMB with low IT budget. part1
  2. How to setup OpenVPN server on debian? part2
  3. How to create site to site vpn from pfsense to openvpn server.part3

OK, we already have Openvpn server at central office. Now our task is to configure branch office pfsenses (why pfsense) to connect central office Openvpn server:

  1. create Hyperv VM for pfsense at branch office 01:
    • mount pfsense iso to the pfsense VM
    • create fixed size virtual disk, 5gb is enough. if you use dynamic disk – pfsense freebsd installer can fail
    • before pfsense installation
… Read the rest

How to setup OpenVPN server on debian? part2

July 22, 2017 by Munkhtuvshin Baatar
2 comments

We continue previous post about creation of site to site vpn between multiple branch offices and central office of company.

  1. Install latest Debian Linux (better from network installer). During the installation choose:
    • ssh server
    • std system utilities
  2. Configure IP address for the server. For example nano /etc/network/interfaces:
iface eth0 inet static
address 192.168.0.2 # it is considered that 192.168.0.1 is used as dgw in central
… Read the rest

How to create site to site VPN for SMB with low IT budget. part1

July 19, 2017 by Munkhtuvshin Baatar
2 comments

It’s commonplace to connect multiple company branches and central office by VPN. For my customers for example it’s needed to :

  1. implement Active Directory (for small companies with single IT team – only one AD domain and multiple AD sites, everywhere if possible one AD DC)
  2. integrate into one DB all Time Attendance machines – one Zkteco application for accountant at central office connects thru vpn
… Read the rest

If you need temporary VPS hosting (for testing, for development and so on)

May 6, 2017 by Munkhtuvshin Baatar
No comments

Sometimes temporary, moreover free VPS hosing for 1 year is great and generous opportunity. Usually it’s very handy for testing (for example to install linux, configure lamp, wordpress, 2fa, freeSSL, plugins and so on ), web development, personal blogs, short-term projects like election events and so on.

Amazon Web service suggests it for whole 1 year. Just be VERY careful to not trespass limits of free tier (for example AWS automatically has done EBS snapshots during import of my vmware ova to AWS AMI and later on to free tier instance — although 09 cents were generously forgiven by AWS … Read the rest

Some considerations about what is highly preferable to have for SMB companies in Mongolia:

February 5, 2017 by Munkhtuvshin Baatar
One comment



1. For central office to have at least small server room – dedicated isolated room with at least consumer Air Conditioner [better japanese – about 1500000 mnt + installation fee]( when you use only RACK without server room – too loud, physically not secure even for locked RACK [anybody can hit or collide with RACK and shock damages hard drives], too much dust which will clog all fans and as consequence rise of temperature, fan speed, even more noise). Size is at least 2×2.5 meter to place RACK and be able to go around it, room door better … Read the rest
